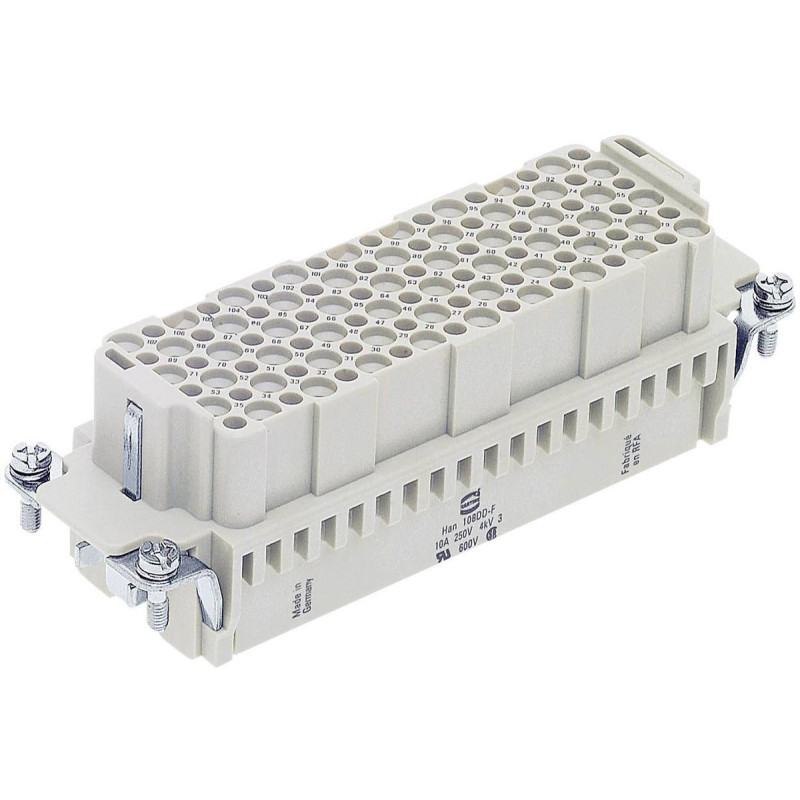

Harting (09 16 108 3001) Heavy Duty Connector, 109 Contacts, 24B, Plug

Heavy Duty Connector, 108+PE, Less Contacts, Han DD, Insert, 109 Contacts, 24B, Plug Product Overview The 09 16 108 3001 is a 108-position Han DD Male Insert Crimp Module for use with 24B series connectors. 0.14 to 2.5mm² wire cross section area with crimp terminals. Made of polycarbonate, RAL 7032 (light grey) colour. 500 Mating cycles UL94V-0 Flammability rating 10A Current rating 250V Rated voltage 4kV Rated impulse voltage UL94V-0 Flammability rating Applications Industrial Product Information Product Range: Han DD Heavy Duty Connector Type: Insert No. of Contacts: 109Contacts Rectangular Shell Size: 24B No. of Contacts: 109 Contacts Gender: Plug (View Associated Connectors) Heavy Duty Contact Type: Crimp Pin - Contacts Not Supplied Current Rating: 10A
