Amphenol (B1121E1-ND3G-5-50) RF / Coaxial Connector, BNC Coaxial, 50 ohm

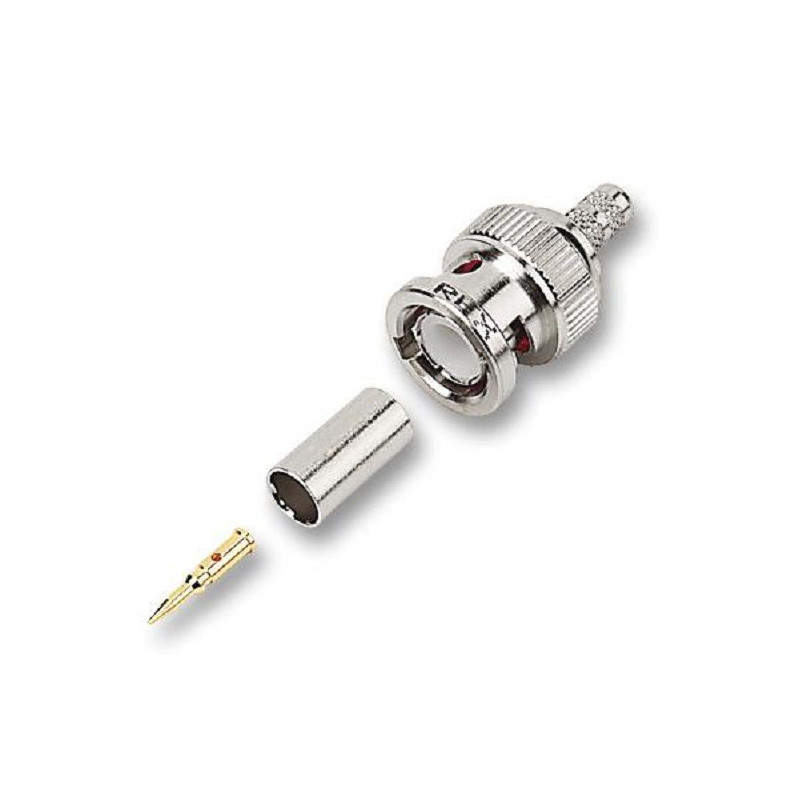

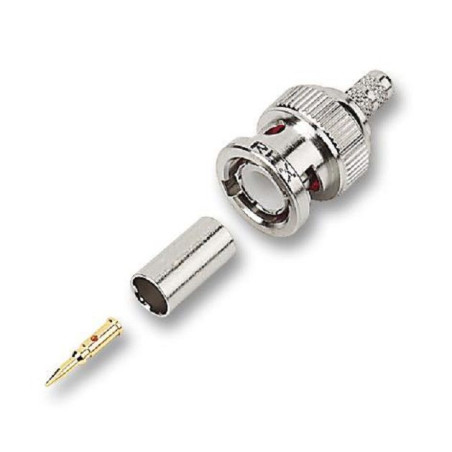

RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG174, RG188, RG188A, RG316 Product Overview The B1121E1-ND3G-5-50 is a straight BNC Coaxial Plug with gold-plated brass contact. This coaxial plug is suitable for RG174, RG188, RG188A and RG316 cable. It features crimp coaxial termination and 4GHz maximum frequency. 0.178" Hex crimped ferrule 0.068" Hex crimped contact pin Delrin natural insulator Nickel-plated brass body Nickel-plated brass shell Rubber gasket Applications RF Communications Product Information Connector Type: BNC Coaxial Connector Body Style: Straight Plug Coaxial Termination: Crimp Impedance: 50ohm Coaxial Cable Types: RG174, RG188, RG188A, RG316 Contact Material: Brass Contact Plating: Gold Plated Contacts Frequency Max: 4GHz Connector Mounting: Cable Mount Product Range: -
