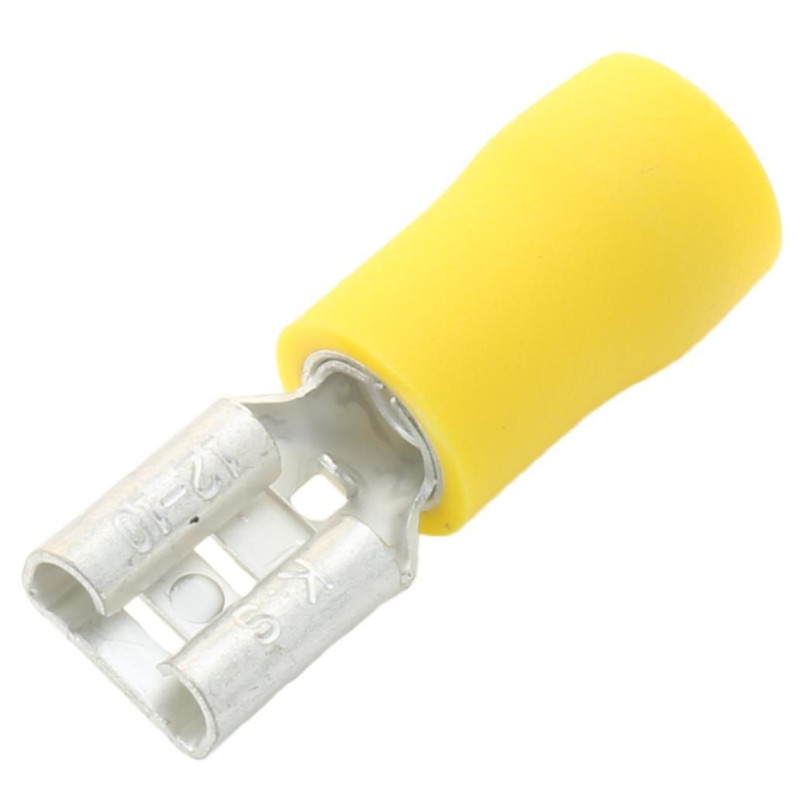

Multicomp Pro (FDD5-250) Quick Disconnect Terminal, 0.25" x 0.032", 12 AWG
R1,135.00
Tax included
The FDD5-250 is a yellow female push-on double Crimp Terminal with vinyl insulation and brass/copper terminals as per BS6017 (1981) standard. Quick disconnect type, electro tin plated as per BS1872 (1984) standard.
Product Overview
TEasy cable entry guide which eliminate flared wire strands and bright electro tinned finish which prevents oxidization. A digit is indented above the crimp to verify correct usage. This FDD series terminal accepts 12 to 10AWG wire gauge.
- Full compliance to BS4579, IEC352-2 and ISO1996 standards
- 10A Rated current
- 600V at 105°C Maximum electrical rating
- -20 to +85°C Temperature range
Applications
Industrial, Communications & Networking
Product Information
- Product Range: FDD5
- Terminal Type: Female Quick Disconnect
- Tab Size - Metric: 6.35mm x 0.81mm
- Tab Size - Imperial: 0.25" x 0.032"
- Wire Size AWG Min: 12AWG
- Wire Size AWG Max: 10AWG
- Insulator Colour: Yellow
- Conductor Area CSA: 6mm²
- Insulator Material: Vinyl
- Terminal Material: Brass
What's in the box
- 100 x Quick Disconnect Terminals
9971866
