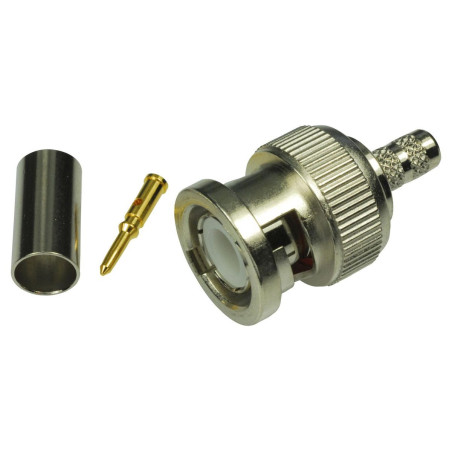

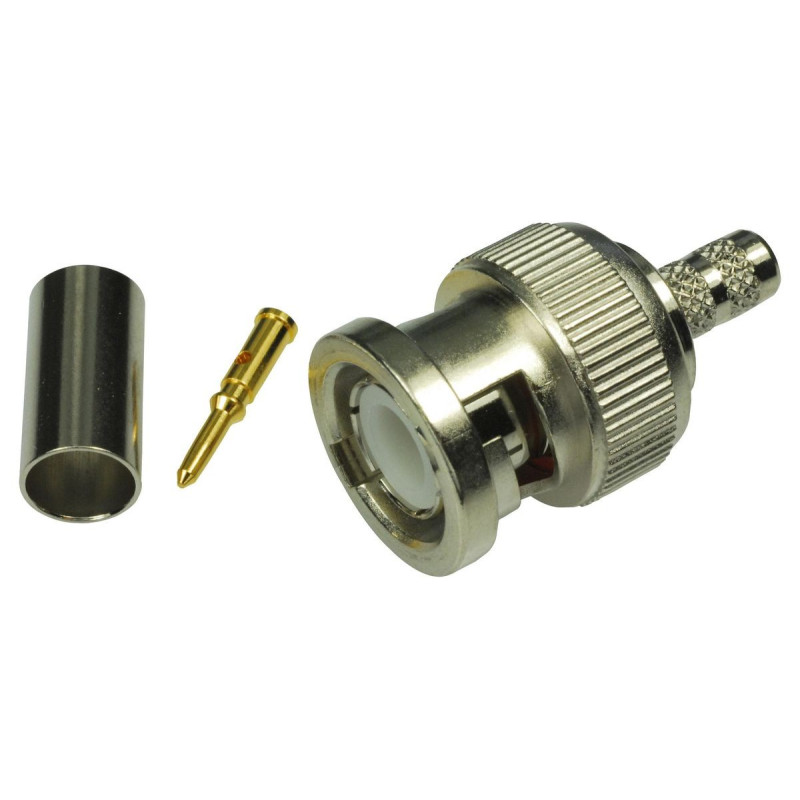

Amphenol (112514) RF / Coaxial Connector, BNC Coaxial, Straight Plug

RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG55, RG142, RG223, RG400 Product Overview The 112514 is a straight BNC Coaxial Plug with gold-plated brass contact. This coaxial plug is suitable for RG55, RG142, RG223 and RG400 standard cable. Medium size with bayonet lock. 50R impedance for applications up to 4GHz. The connector is intermateable without restrictions. Nickel finish Delrin insulator 500VRMS Working Voltage 1.5mR (center) and 1mR (outer) Contact resistance 5000MR Minimum insulation resistance Captive contact Applications RF Communications Product Information Connector Type: BNC Coaxial Connector Body Style: Straight Plug Coaxial Termination: Crimp Impedance: 50ohm Coaxial Cable Types: RG55, RG142, RG223, RG400 Contact Material: Brass Contact Plating: Gold Plated Contacts Frequency Max: 4GHz Connector Mounting: Cable Mount Product Range: -
