Multicomp Pro (MP-19-55W-3-TGG) RF / Coaxial Connector, SMA Coaxial, 50 ohm

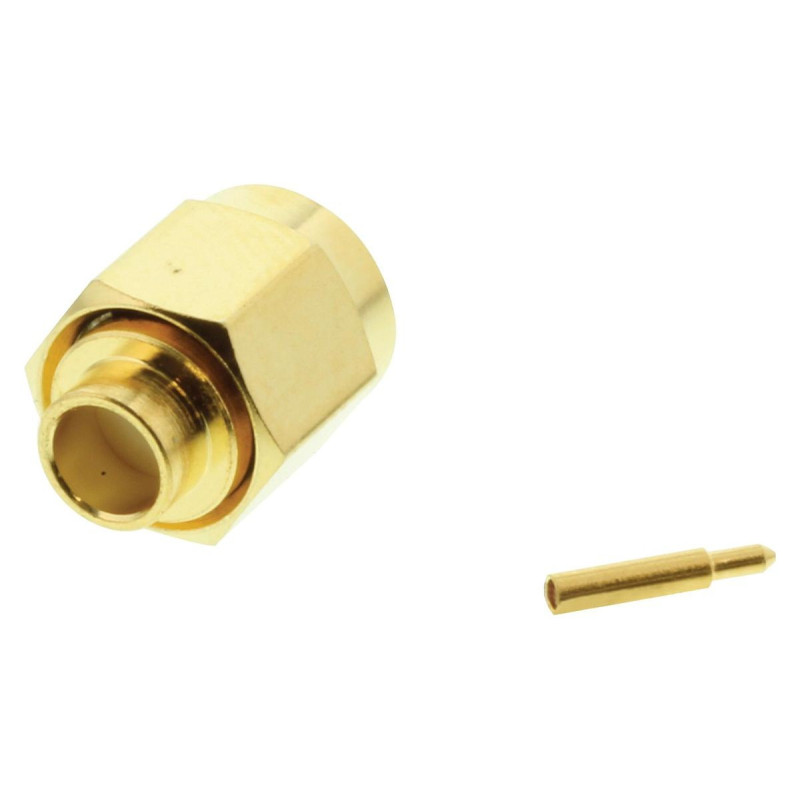

RF / Coaxial Connector, SMA Coaxial, Straight Plug, Solder, 50 ohm, RG402, Brass Product Overview The 19-55W-3-TGG is a SMA Straight Plug with gold plated brass contact, gold plated brass body and PTFE insulator. Cable mounting and solder type termination. This RF/coaxial connector can be used to connect RG402/U cable. 50R Impedance 3mR Contact resistance 5000MR Insulation resistance -65 to +165°C Operating temperature range Applications Aerospace, Defence, Military, Communications & Networking, Industrial Product Information Connector Type: SMA Coaxial Connector Body Style: Straight Plug Coaxial Termination: Solder Impedance: 50ohm Coaxial Cable Types: RG402 Contact Material: Brass Contact Plating: Gold Plated Contacts Frequency Max: 18GHz Connector Mounting: Cable Mount Product Range: 19-xxx-x-TGG
