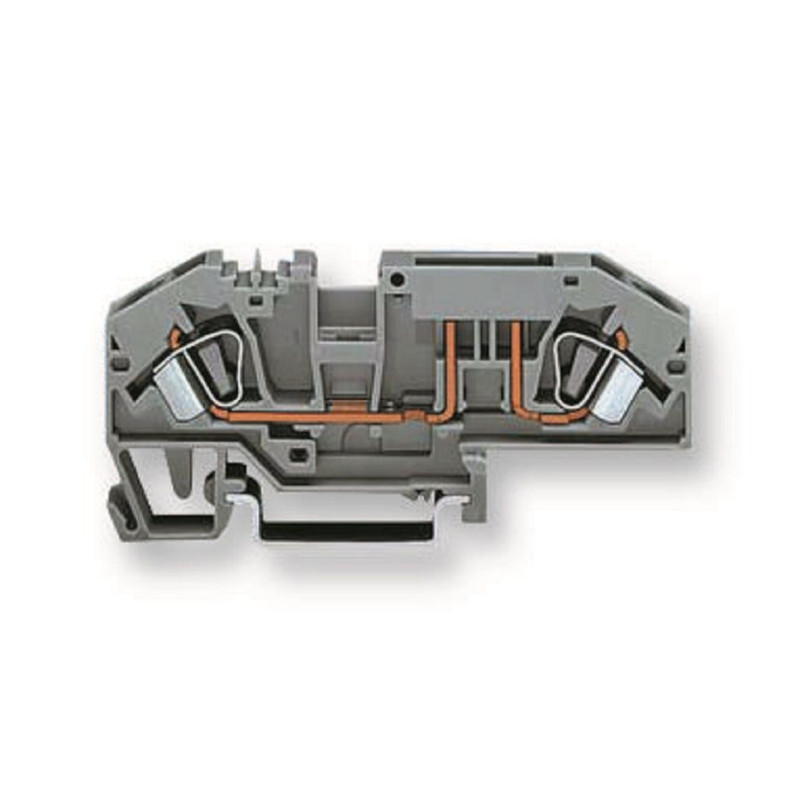

Wago (282-696) DIN Rail Mount Terminal Block, Fused, 2 Ways

DIN Rail Mount Terminal Block, Fused, 2 Ways, 24 AWG, 10 AWG, 6 mm², Clamp, 30 A Product Overview The 282-696 from Wago is a 2 conductor fuse terminal block. This terminal block is used for mini-automotive blade style fuses with test option without blown fuse indication and is suitable for wire size ranging from 24AWG to 10AWG. Gray colour terminal block Dimension of terminal block is 33.5mm x 85mm x 8mm (H x D x W) Weight of 17.22g Angled wiring type UL, CSA recognised Pollution degree of 3 Applications Industrial Product Information Wire Size AWG Min: 24AWG Wire Size AWG Max: 10AWG Conductor Area CSA: 6mm² Wire Connection Method: Clamp Rated Current: 30A Rated Voltage: 800V No. of Levels: 1 Product Range: 282
