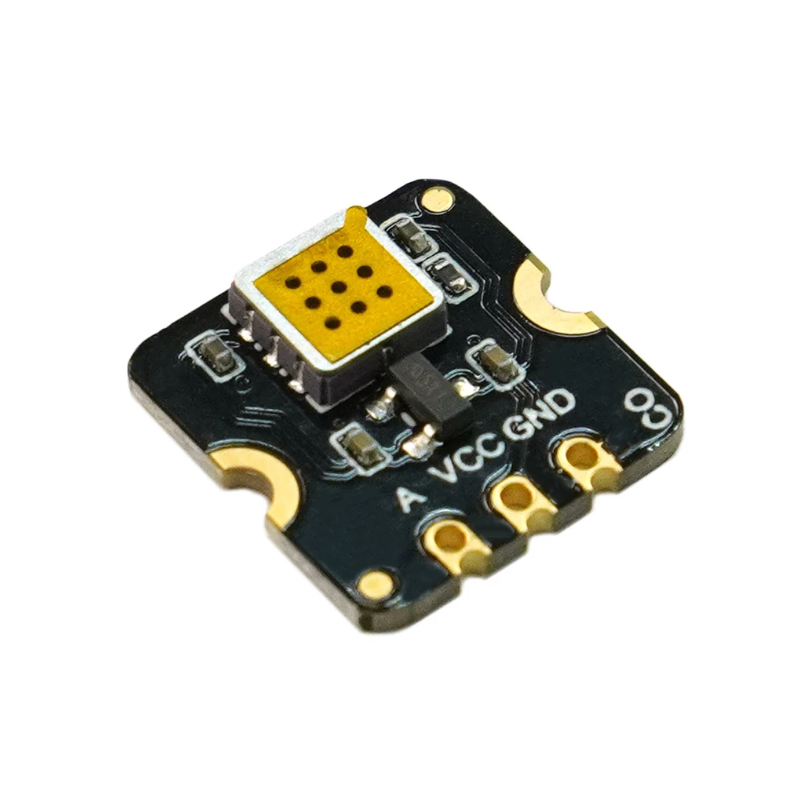

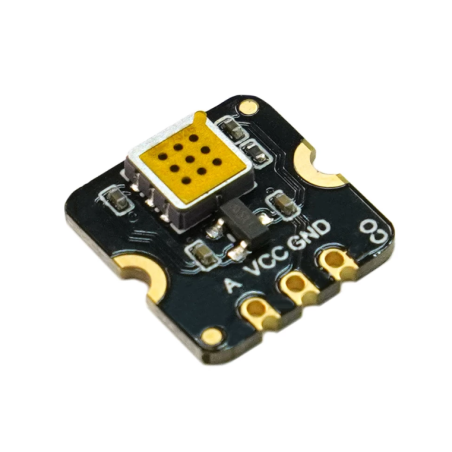

DFRobot SEN0564 Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor (Breakout, 5-5000ppm)

SEN0564 is a Fermion: MEMS Carbon Monoxide CO gas detection sensor breakout board. It employs state-of-the-art micro electromechanical system (MEMS) technology, endowing the sensor with compact dimensions, low power consumption (< 20mA), minimal heat generation, a short preheating time, and swift response recovery. The sensor can measure carbon monoxide gas concentrations qualitatively and is suitable for carbon monoxide leak alarms and portable carbon monoxide detectors. Also suitable for metallurgy carbon monoxide detection, mining carbon monoxide detection and environmental protection.

Compact size, measuring only 13 x 13 x 2.5mm

Low power consumption

High sensitivity and rapid response recovery

Advanced MEMS technology

Detection range from 5-5000ppm

Operating voltage range from 3.3 to 5V

Analog voltage output signal

Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3

Lifespan: ≥5 years (in air)

Operating temperature range from -10 to 50°C

Alt REFERENCE: 4733254
