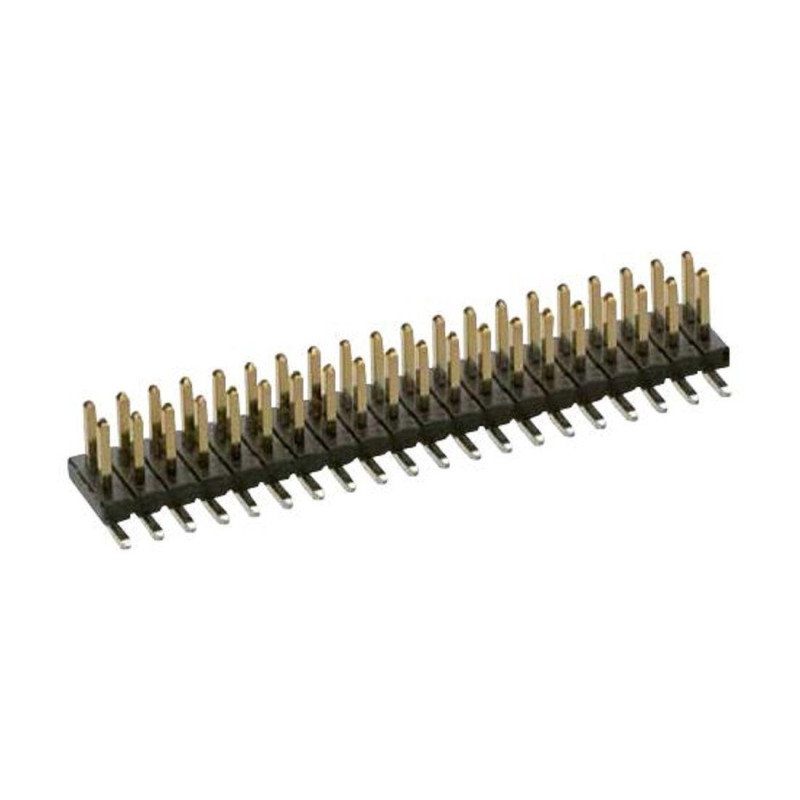

Harwin (M50-3602042) Pin Header, Board-to-Board, 1.27 mm, 2 Rows

Pin Header, Board-to-Board, 1.27 mm, 2 Rows, 40 Contacts, Surface Mount, Archer M50 Product Overview The M50-3602042 is a 40-contact 2-row 1.27mm male Board-to-board Pin Header with gold plated brass contacts, 100% tin over nickel plated termination and black UL94V-0 polyamide (nylon) 6T housing. The M50 series plug has 3mm mating pin height, vertical connector orientation and surface mount (SMT) connection type. It is suitable for use with 0.4mm square mating pin size. 1A Current rating 20mR Maximum contact resistance 1000MR Minimum insulation resistance 1000VAC for one minute Dielectric withstanding voltage 300 cycles minimum Durability Applications Commercial, Industrial Product Information Connector Systems: Board-to-Board Pitch Spacing: 1.27mm No. of Rows: 2Rows No. of Contacts: 40Contacts Contact Termination Type: Surface Mount Product Range: Archer M50 Connector Shroud: Unshrouded Contact Material: Copper Alloy Contact Plating: Gold Plated Contacts
