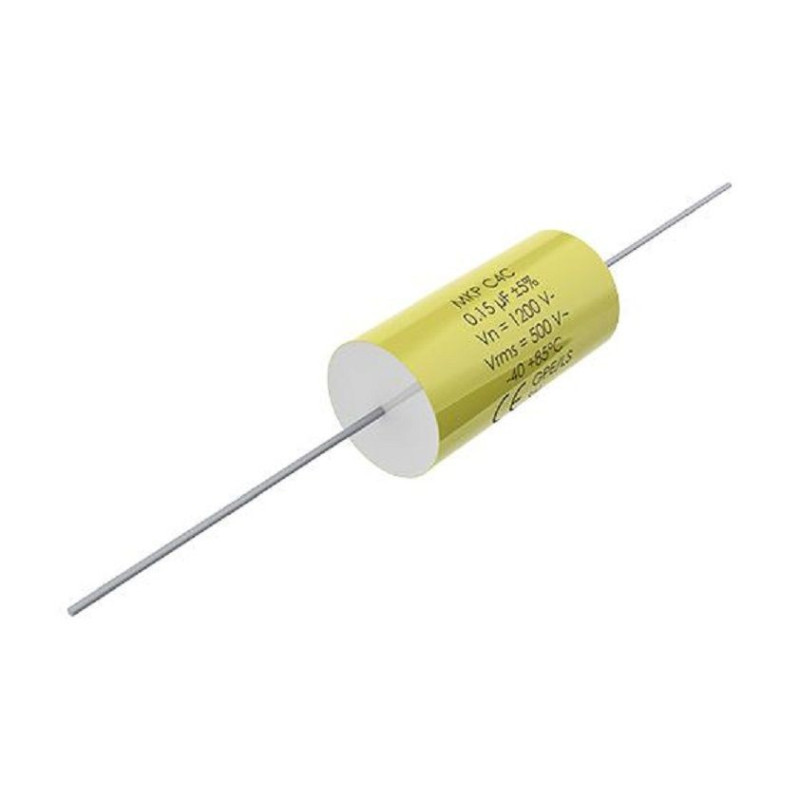

Kemet (C4CAWUD3330AA1J) Power Film Capacitor, Metallized PP, Axial Leaded

Power Film Capacitor, Metallized PP, Axial Leaded, 0.33 µF, ± 5%, High Frequency, Through Hole Product Information Dielectric Type: Metallized PP Capacitance: 0.33µF Capacitor Case Style: Axial Capacitor Case / Package: Axial Leaded Capacitance Tolerance: ± 5% Typical Applications: High Frequency Capacitor Mounting: Through Hole Voltage(AC): 630V Voltage(DC): 2kV Lead Spacing: - Operating Temperature Min: -40°C Operating Temperature Max: 85°C Capacitor Terminals: PC Pin dv/dt Rating: 700V/µs Peak Current: 231A ESR: 0.0059ohm Output (kvar): - Height: 44mm Product Height: 44mm Product Diameter: 28.5mm Product Range: C4C Series Ripple Current: 12A Series Name: C4C Qualification: - Product Overview The C4C Series is a polypropylene metallized film and polyester double-metallized foil with polyester tape wrapping filled with resin and tinned copper wires. Typical applications include snubber, clamping, resonance, coupling/decoupling, pulse and blocking. Self-healing Low losses High ripple current High contact reliability Suitable for high frequency applications PP metallized and PET double-sided metallized foil
