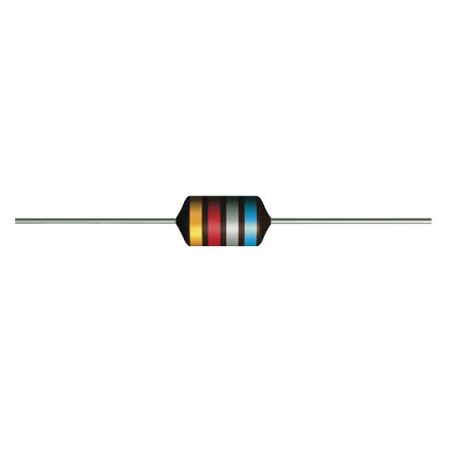

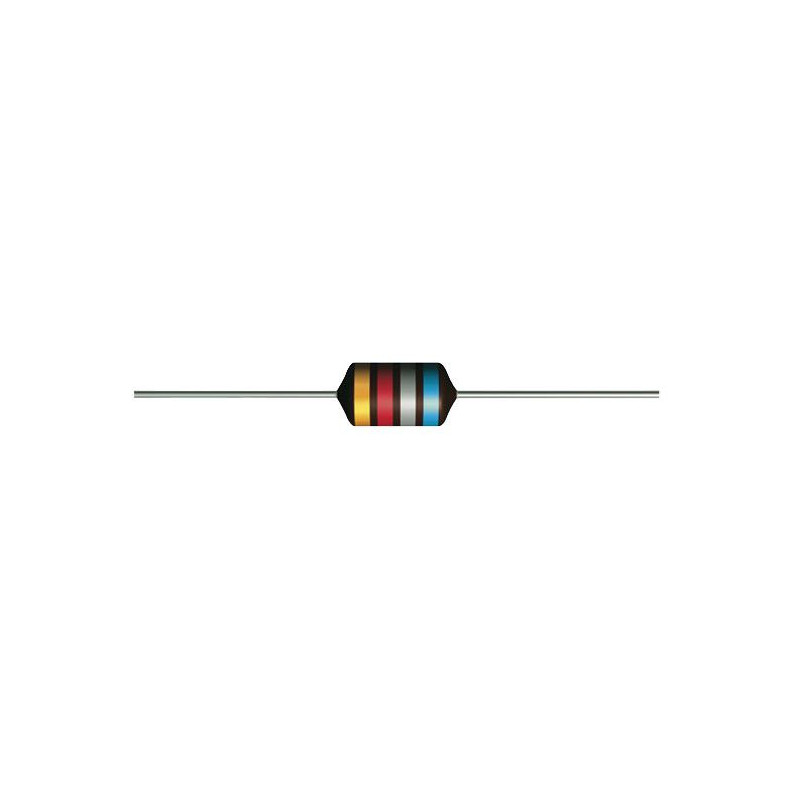

Epcos (B82145A1475J000) RF Choke, B82145A, HLBC, 4.7mH

Product Description

The Epcos B82145A1475J000 is a leaded RF choke from the HLBC series, rated at 4.7 mH, built with a large ferrite drum core and enamel copper wire winding with a flame-retardant lacquer coating. It offers a current rating of 170 mA with a DC resistance of 18Ω, and a self-resonant frequency of 500kHz. Suitable for wave soldering, its terminals are radially bent to 5mm lead spacing and electroplated with nickel and pure tin for reliable, long-term connections. It's well-suited for interference suppression, decoupling, energy-saving lamp circuits, and entertainment electronics applications requiring high current at higher inductance ratings.

Quick Spec Sheet

• Inductance: 4.7 mH
• Inductance tolerance: ±5%
• Rated current: 170 mA
• DC resistance (max): 18 Ω
• Self-resonant frequency (min): 500 kHz
• Core material: Ferrite (large bobbin/drum core)
• Construction: Enamel copper wire winding, flame-retardant lacquer coating
• Terminals: Radially bent, 5mm lead spacing, nickel/pure tin plated
• Mounting type: Axial leaded, through-hole, wave-solderable
• Series: HLBC (B82145A Series)
• Typical applications: Interference suppression, decoupling, energy-saving lamps, entertainment electronics
