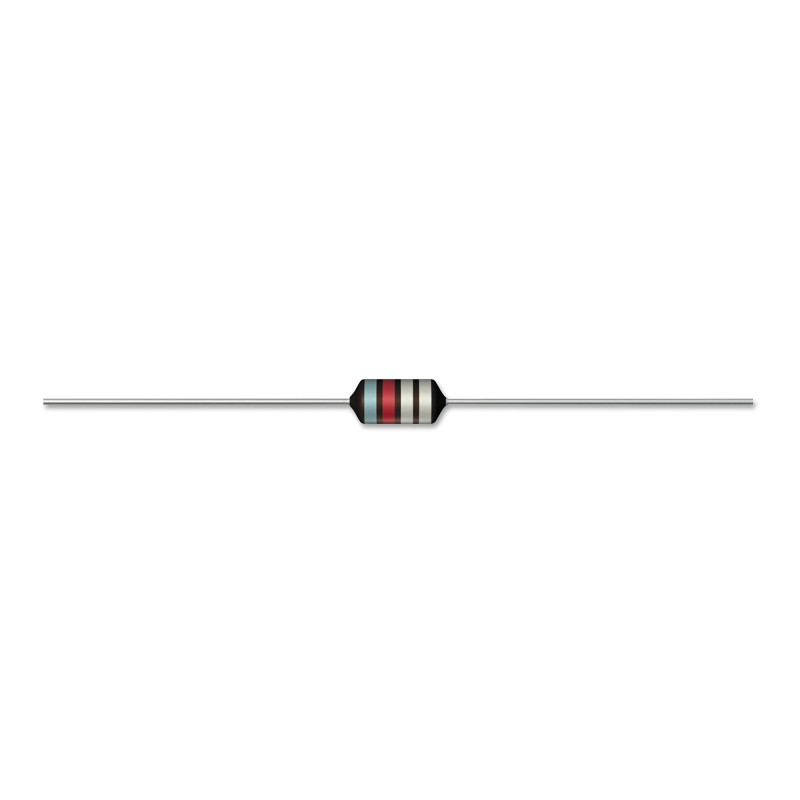

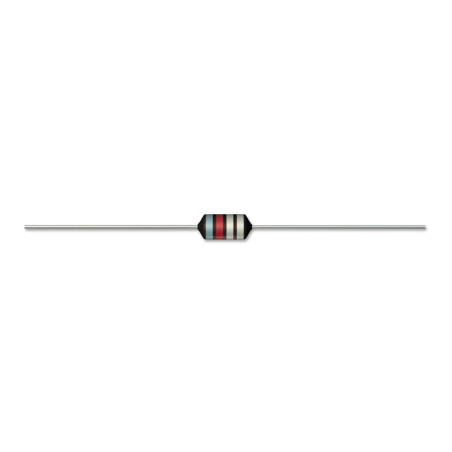

Epcos (B82144A2103K000) RF Choke, B82144A LBC, 10µH, 1.4A

Product Description

The Epcos (TDK) B82144A2103K000 is a leaded RF choke from the LBC series, rated at 10 µH, built with a large ferrite drum core and enamel copper wire winding for reliable general-purpose performance. It offers a current rating of 1.4 A with a DC resistance of 0.22Ω, and a self-resonant frequency of 60MHz for stable high-frequency operation. Its axial leaded, unshielded construction makes it well-suited for RF blocking and filtering, decoupling and interference suppression, antenna systems, and energy-saving lamp circuits.

Quick Spec Sheet

• Inductance: 10 µH
• Inductance tolerance: ±10%
• Rated current: 1.4 A (1400 mA)
• DC resistance (max): 0.22 Ω
• Self-resonant frequency (min): 60 MHz
• Q factor: 60
• Core material: Ferrite (bobbin/drum core)
• Construction: Enamel copper wire winding, unshielded
• Case dimensions: 5.2mm x 12mm
• Mounting type: Axial leaded, through-hole
• Series: LBC (B82144A Series)
• Typical applications: RF blocking and filtering, decoupling, interference suppression, antenna systems, energy-saving lamps
