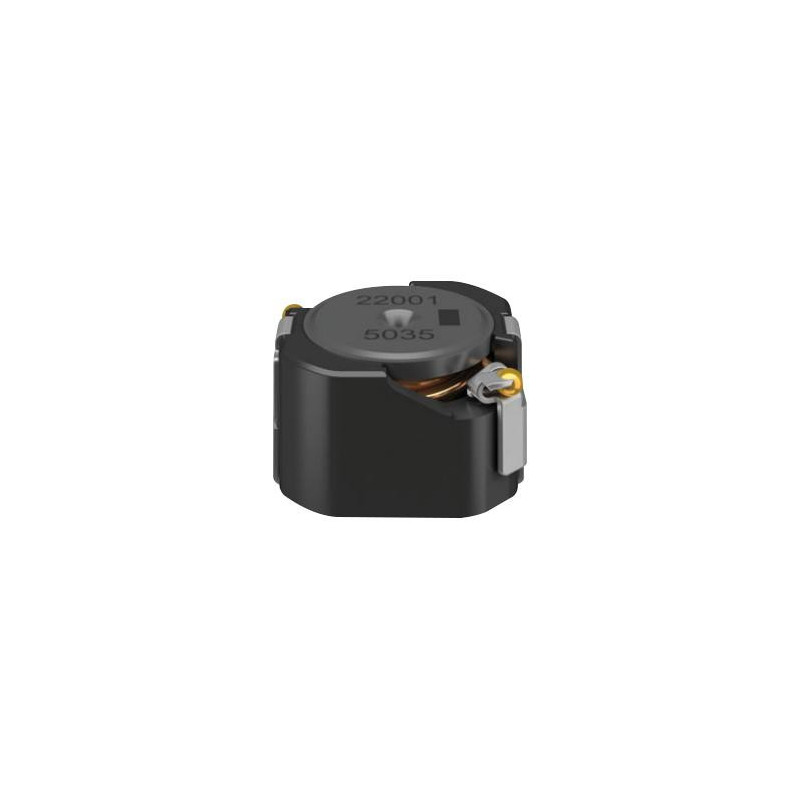

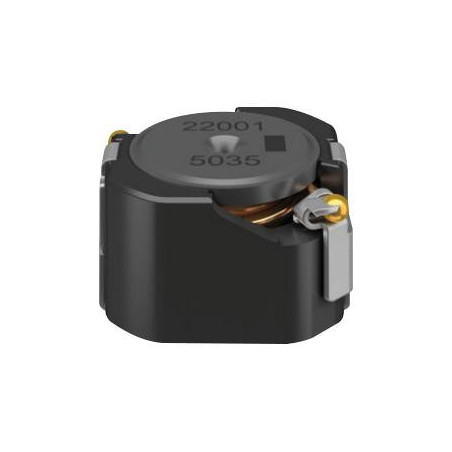

Epcos (CLF6045NIT-150M-D) 15µH Power Inductor, Shielded SMD

Product Description

The Epcos (TDK) CLF6045NIT-150M-D is a shielded SMD power inductor rated at 15 µH, built with a wirewound ferrite core construction for reliable, low-noise performance. It offers an RMS current rating of 2 A and a matching saturation current of 2 A, with a low DC resistance of 0.072Ω for improved efficiency at a 100kHz operating frequency. Its shielded design helps minimize electromagnetic interference, and it's automotive-grade (AEC-Q200 qualified), making it well-suited for automotive electronics, DC/DC converters, and other applications demanding high reliability in compact spaces.

Quick Spec Sheet

• Inductance: 15 µH
• Inductance tolerance: ±20%
• RMS current (Irms): 2 A
• Saturation current (Isat): 2 A
• Construction: Shielded, wirewound, ferrite core
• DC resistance (max): 0.072 Ω (0.06 Ω typ.)
• Operating frequency: 100 kHz
• Case size: 6.3mm x 6mm x 4.5mm
• Mounting type: SMD (Surface Mount)
• Qualification: AEC-Q200 (Automotive)
• Product range: CLF-NI-D Series
