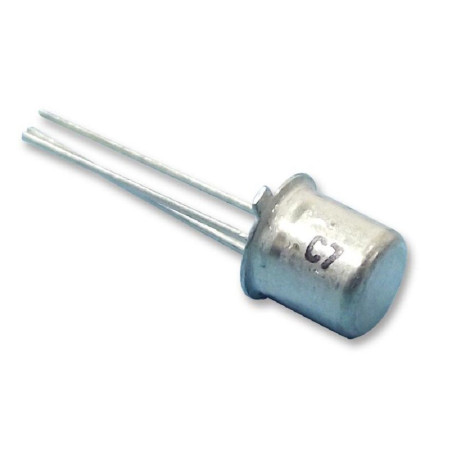

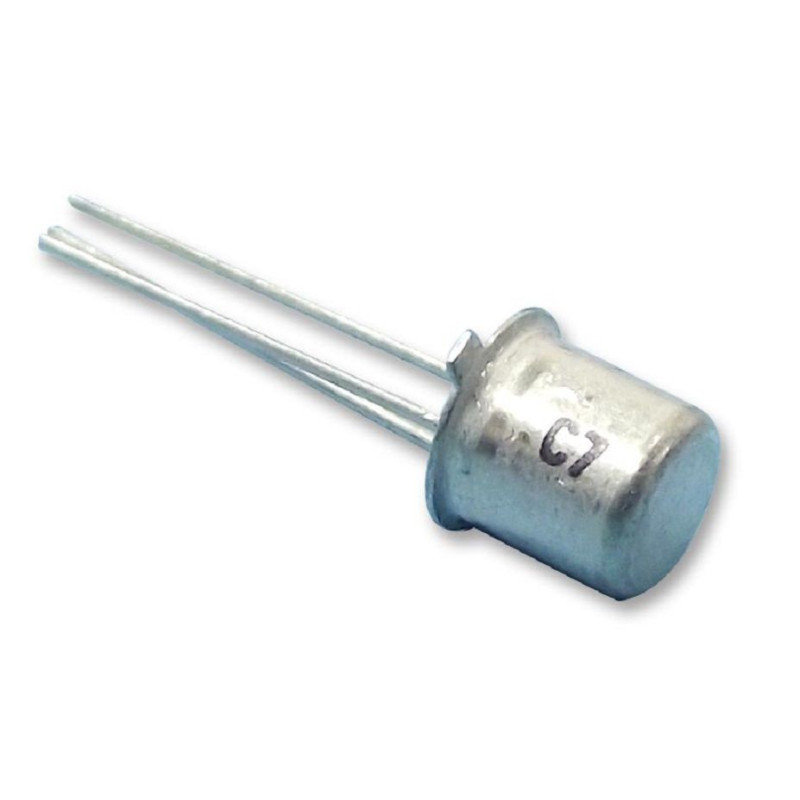

Multicomp Pro (BC107A) Bipolar (BJT) Single Transistor, General Purpose

Product Overview The BC107A is a 45V Silicon NPN Bipolar Planar Epitaxial Transistor intended for general purpose amplifier or switches. Low power Collector-base voltage(Vcbo = 50V) Emitter-base voltage(Vebo = 6V) Product Information Transistor Polarity: NPN Collector Emitter Voltage V(br)ceo: 45V DC Collector Current: 100mA Power Dissipation Pd: 600mW Transistor Case Style: TO-18 Transistor Mounting: Through Hole No. of Pins: 3Pins Transition Frequency ft: 150MHz DC Current Gain hFE: 110hFE Operating Temperature Max: 200°C Product Range: - Automotive Qualification Standard: - MSL: -
