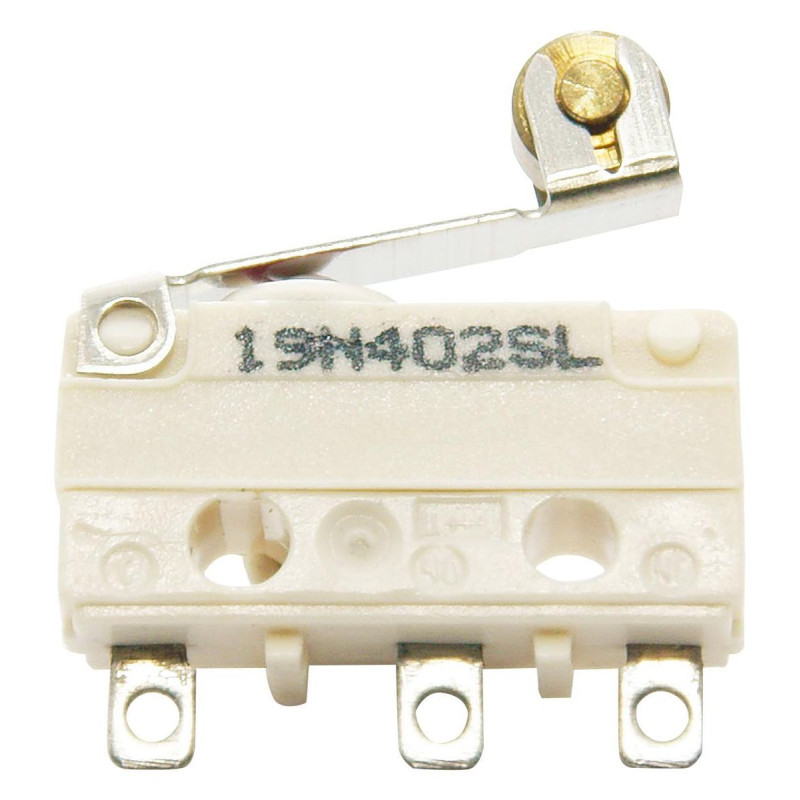

ITW Switches (19N402R15) Microswitch, Snap Action, Roller Lever, SPDT

Microswitch, Snap Action, Roller Lever, SPDT, Solder, 5 A, 28 VDC Product Information Microswitch Type: Snap Action Microswitch Actuator: Roller Lever Contact Configuration: SPDT Switch Terminals: Solder Contact Current Max: 5A Contact Voltage DC Nom: 28VDC Product Range: 19N Contact Voltage AC Nom: 250VAC Operating Force Max: 2N Product Overview The 19N series switches from ITW are miniature microswitches. These switches are high quality products suited for large volume applications. The spring and blade method is used as a switching mechanism and available in different operating forces. All versions have a fully sealed base right up to the bottom opening. In addition, sealed button versions are totally environmental sealed. Fully sealed to IP67 Wide temperature range from -40°C to +125°C Standard roller lever Non flammable switch to UL94-V0 rated Silver contacts BEAB approved PCB Terminals Operating force of 0.5N Operating force of 0.5N, 2N, 1.5N Applications Industrial, Power Management, Automation & Process Control
